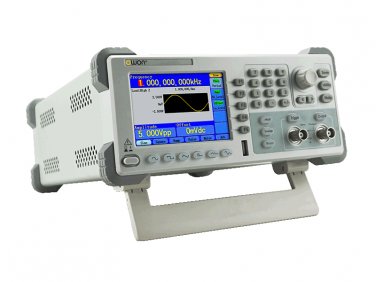

Owon AG4151 Single150MHZ 400MSa/S 14bits DDS Arbitrary Waveform Generator 1.Introduction:Main Features: - Advanced DDS technology,Max 150MHZ frequency output - Up to 400Msa/S sample rate and 32bits Frequency resolution - Vertical Resolution: 14bits,Up to 1M Arb waveform length - Comprehensive waveform outputs: Sine,Square,Ramp,Pulse,Noise,Sinc,Exponential Rise and Decay,32 channels digital waveform,DC and user defined arbitrary waveform - Comprehensive modulation functions: AM,FM,PM,FSK,PWM modulations - 3.9 inch high resolution 480×320 pixels)TFT LCD display Application: Design and Debug Circuit function test Education and Training 2.Specification: ModelAG1022AG4151Bandwidthtwo channels 25MHZone channel 150MHZSample Rate125MSa/s400MSa/sVertical Resolution14bitsStandard waveformsSine, Square, Pulse, Ramp, NoiseArbitrary waveformsSinc,Exponential Rise and Decay, DC, User definedSinc,Exponential Rise and Decay, DC, User defined, 32 channels digital waveformFrequency CharacteristicsSine1 μHz—25MHz1μHz—150MHzSquare1 μHz—10MHz1 μHz—50MHzPulse1 μHz—10MHz1 μHz—25MHzRamp1 μHz—1MHz1 μHz—1MHzArb1 μHz—10MHz1 μHz—10MHzArbitrary waveformsWavelength2 to 8Kpts2 to 1MptsSample Rate125MSa/s200MSa/sVertical Resolution14bitsNon-Volatile Memory4 waveformsAmplitude characteristicsAmplitude10mVPP-10VPP(50Ω) 20mVPP-20VPP(High Impedance)Resolution1mVPP or 14bitsDC Offset Range （AD+DC）±5V(50Ω)、±10V(High Impedance)DC Offset Range Resolution1mVLoad Impedance50Ω(typical)Modulation CharacteristicsModulation Waveforms/AM, FM, PM, FSK, PWM, linear / logarithm sweep and burst waveformModulation Frequency/2mHz-20.00 kHz （FSK 1μHz-100kHz)Input / OutputDisplay3.9-inch(480×320) TFT LCDTypeexternal reference clock input/outputExternal modulation input/output, External trigger input/output, external reference clock input/outputInterfaceUSB Host,USB Device,RS232USB Host,USB Device,RS232,LANMechanicalDimensions(W×H×D)235×110×295(mm)Weight(without package)3KG Model No.: AG4151 Product Features + Advanced DDS technology, max 150MHz frequency output + Up to 400MS/s sample rate, and 1μHz frequency resolution + Vertical Resolution : 14 bits, up to 1M arb waveform length + Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms + Comprehensive modulation functions : AM, FM, PM, FSK, PWM, Sweep, and Burst + SCPI, and LabVIEW supported + 4 inches high resolution (480 × 320 pixels) LCD Product description OWON AG4151 is single-channel arbitrary waveform generators, using advanced DDS technology, AG4151 up to 150MHz frequency output, high resolution to 1uHz, sample rate 400MS/s. It can output 5 basic waveform, 45 built-in arbitrary waveform and user-defined arbitrary waveforms. Arb waveform length to 1M. AG4151 can support comprehensive modulation functions, AM, FM, PM, FSK, PWM, Sweep and Burst and 6 digits frequency counter. Sine 1uHz~150MHz, Square 1uHz~50MHz, Ramp 1uHz~1MHz, Noise 50MHz(-3dB)(typical), Arb 1uHz~10MHz. Amplitude Max to 20Vpp under high impedance, with resolution 1mV. Dimension 235 x 110 x 295 mm, 3.00kg. Package: Power cord (1pc) CD Rom (1pc) Quick Guide (1pc) USB Cable (1pc) Q9 cable (1pc) Dimension: 235x110x295mm Weight: 3.00kg
