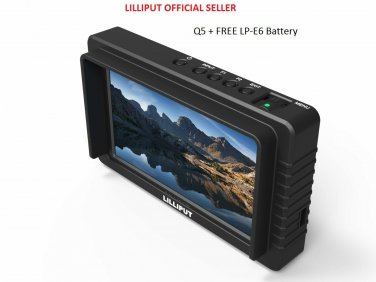

Q5 ( SDI/ HDMI cross conversion Full HD metal frame monitor) -exclusive version Black 5.5" FHD SDI Monitor1920x1080, Full HD resolution,450cd/m² high brightness,1000:1 high contrast,Waveform PIP mode,Column (YRGB peak), time code,SDI and HDMI cross conversion,Metal housing, 20mm slim. DISPLAY Display Screen 5.5" IPS 8bits Physical Resolution 1920×1080 (401ppi) Aspect Ratio 16:9 Brightness 450cd/m2 Contrast 1000:1 Viewing Angle 160°/160°(H/V)INPUT 3G-SDI 1 HDMI 1OUTPUT 3G-SDI 1 HDMI 1AUDIO Speaker 1 Ear Phone Slot 1SDI FORMAT SMPTE-125M 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) SMPTE-292M 1080p(30/29.97/25/24/24sF/23.98/23.98sF) SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98) SMPTE-372M 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) SMPTE-425M-AB 1080p(60/59.94/50) -Level A & Level B 720p(60/59.94/50/30/29.97/25/24/23.98) Level B 2x 1080i(60/59.94/50) ITU-R BT.656 576i(50)HDMI FORMAT Full HD ~ SD 1080p, 1080i, 720p, 576p, 576i, 480p, 486iPOWER Current 1A Input Voltage DC 7-24V Battery Plate F970 and LP-E6 Power Consumption ≤12WENVIRONMENT Operating Temperature -20℃～60℃ Storage Temperature -30℃～70℃DIMENSION Dimension(LWD) 154.5x90x20mm / 157.5x93x23mm (with case) Weight 320g / 340g (with case) What's in the package : Shoe MountBattery Plate(F970+LP-E6 as default) HDMI A/C cable Sunshade 12V DC adapter ManualFree gift : PISEN LP-E6 BATTERY AND CHARGER
