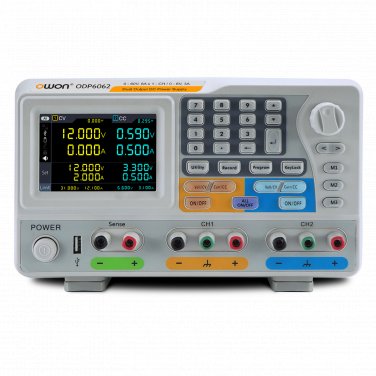

Model No.: ODP6062 Product Features - Tow independent controllable channels+Sense - Output resolution : 1mV / 1mA - Low ripples / low noise - Up to 100 group timers - Multi- working mode : individual, parallel, and series - Over-voltage / Over-current protection - Data-logging function: could record the output voltage, and current; and display recorded data in chart - Auto-cooling system - 4 inch high resolution (480 × 320 pixels) LCD - Multi- CI: USB, RS232, and LAN - SCPI, and LabVIEW supported Product description OWON ODP6062 Programmable DC power supply with three independent controllable channels, Outputs: CH1 0 - 60V/ 0-6A, CH2 0-6V/3A, Max power reaches 378W, it has high resolution 1mV/1mA which makes sure of the accuracy. It can support two independent controllable channels+Sense. Display: 4 inches TFT LCD screen (480*320pixels). Support: 100V/120V/220V/230V. With Creative Data Recording Function, support 100 groups timing output settings, the power output curve could be adjusted via PC or device itself, and applicable to artificial simulated power output variation. Along with load variation, the power output auto-switches between CV / CC. OWON ODP features super- low ripples, and super- low noise. Multiple Interfaces: USB device, USB Host, RS232, LAN. Dimension: 250mm (W) × 158mm(H) × 358mm(D) Weight: 12kg. Application: R&D lab Educational lab, Automotive electronic test, Production testing and quality assessment inspection. Package: Power cord (1pc) CD Rom (1pc) Quick Guide (1pc) USB Cable (1pc) Fuse (1pc) Dimension: 250 x 158 x 358 (mm) Weight: 12.0 kg
